November 2, 2026

Augma Lift™ Kit B – Missing Tooth #16 (3)

Sinus lift with Augma Lift™ Kit B when there is 6 mm Sub Sinus Bone Height

Title slide – Augma Lift Kit B, missing tooth #16 with 6 mm sub-sinus bone height, Dr. David Baranes
CLINICAL CASE Missing Tooth #16 (3) 6 mm Sub Sinus Bone Height Dr. David Baranes DMD, Israel

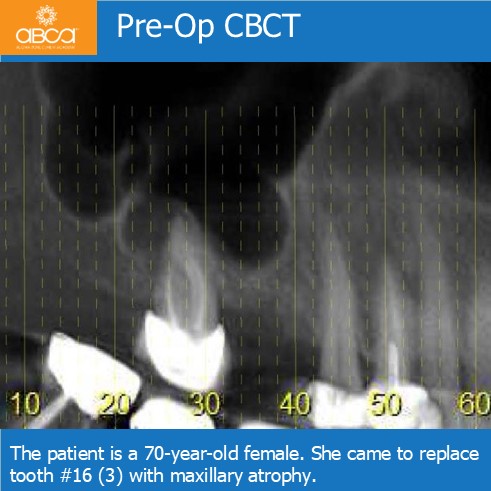

Pre-op CBCT panoramic slice of missing tooth #16 with maxillary atrophy
Pre-Op CBCT – The patient is a 70-year-old female. She came to replace tooth #16 (3) with maxillary atrophy.

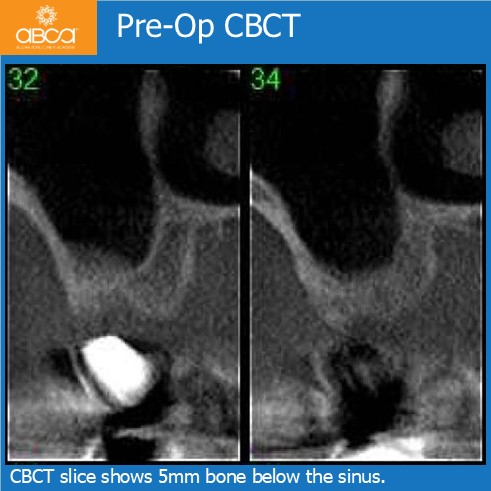

CBCT cross-sections showing 5 mm of bone below the sinus at #16
Pre-Op CBCT – CBCT slice shows 5mm bone below the sinus.

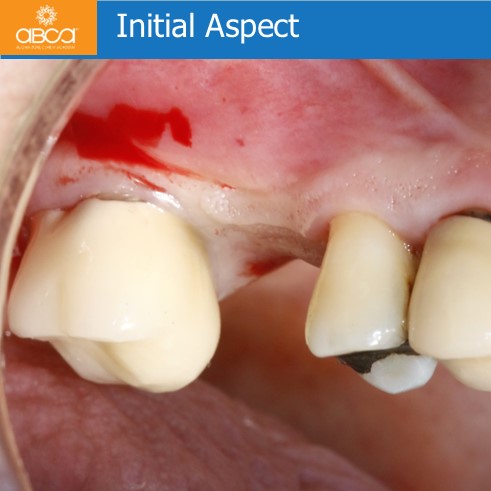

Initial intra-oral aspect of the edentulous #16 site
Initial Aspect
Full thickness flap at the #16 site
Full Thickness Flap
Preparing the crestal osteotomy at #16
Preparing the Osteotomy
Osteotomy preparation toward the sinus floor
Preparing the Osteotomy
B.Y.S. 6 drill from Augma Lift Kit B in the osteotomy
B.Y.S. 6
Bony disk surrounded by bleeding membrane after B.Y.S. 6 broke the sinus floor
B.Y.S. 6 – The B.Y.S. 6 broke through the sinus floor. The bony disk is surrounded by the bleeding membrane.
Osteotome elevating the sinus membrane 1 mm at a time
Elevating the Membrane – Membrane elevation by increasing the osteotome 1mm at a time.

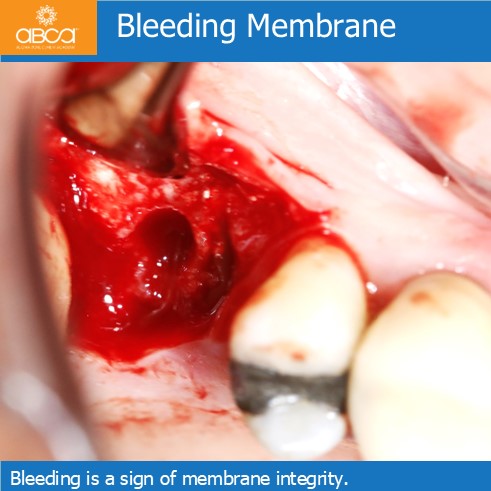

Bleeding membrane confirming sinus membrane integrity
Bleeding Membrane – Bleeding is a sign of membrane integrity.
Bond Apatite delivered by syringe into the osteotomy
Bond Apatite® in Place – The syringe brings the bone graft to the osteotomy.

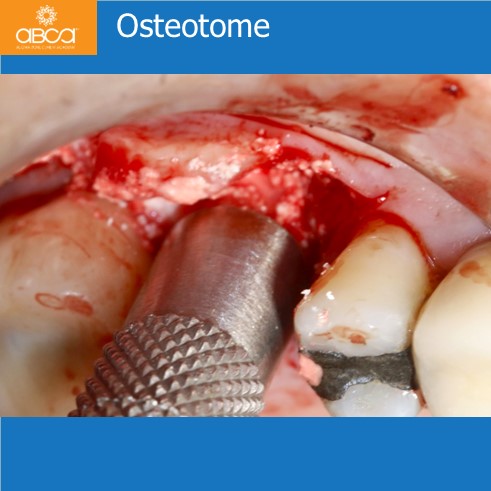

Osteotome pushing Bond Apatite into the sinus
Osteotome
3.75 x 11.5 mm implant placed at #16 after sinus lift
Implant – 3.75 11.5
Sutures around the #16 implant site
Sutures

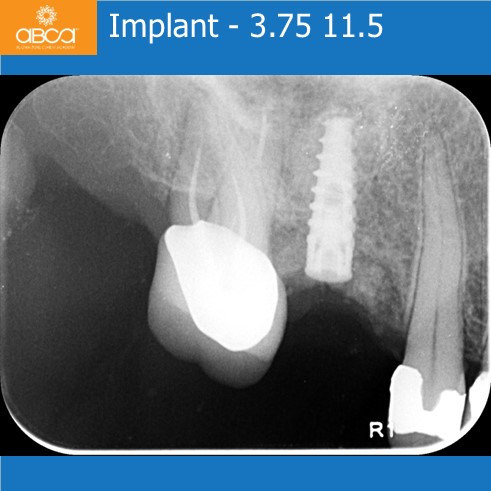

Post-op X-ray of the 3.75 x 11.5 mm implant at #16
Implant – 3.75 11.5
X-ray 1 year post-op showing implant #16 in new bone
1 Year Post-Op
